Product Introduction
The ESD-1330H 3 Door Lightbox Glass Display Freezer is engineered for high-traffic retail environments requiring stable freezing performance and premium product visibility. With a 900L large-capacity layout, this unit is designed to support continuous commercial merchandising in supermarkets, convenience stores, and beverage retail zones.
Built with a double glass door cooler structure upgraded into a three-door configuration, this model enhances product segmentation and improves customer access efficiency. Operating within a digital controlled temperature range of -22°C to -18°C, it ensures consistent freezing conditions suitable for frozen foods, ice products, and packaged goods display.
As a modern upright retail cooler, it combines visibility, durability, and operational efficiency for long-term commercial use.
| Model | Door | Door type | Dimensions | Capacity | Temp | (20GP/40HQ) |
| ESD-220H | 1 | Hinge door | 420*485*1880 | 220L | -22~-18℃ |
55/139 |
| ESD-400H | 1 | Hinge door | 620*680*1990 | 400L | 27/71 | |
| ESD-600H | 1 | Hinge door | 700*660*2000 | 600L | 24/51 | |
| ESD-700H | 1 | Hinge door | 700*760*2000 | 700L | 21/45 | |
| ESD-800H | 1 | Hinge door | 800*750*2030 | 800L | 18/39 | |
| ESD-1330H | 2 | Hinge door | 1330*760*2000 | 900L | 12/23 | |
| ESD-1985H | 3 | Hinge door | 1985*760*2000 | 1500L | 7/14 |

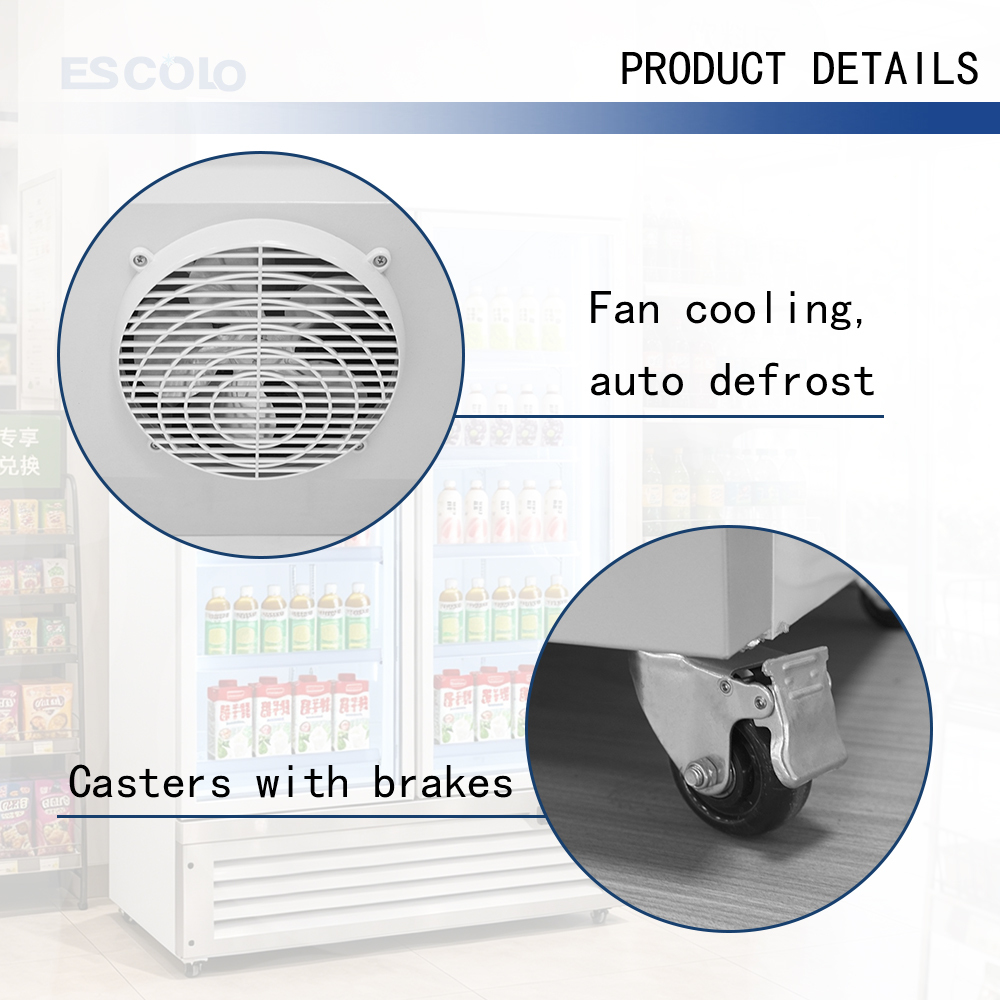

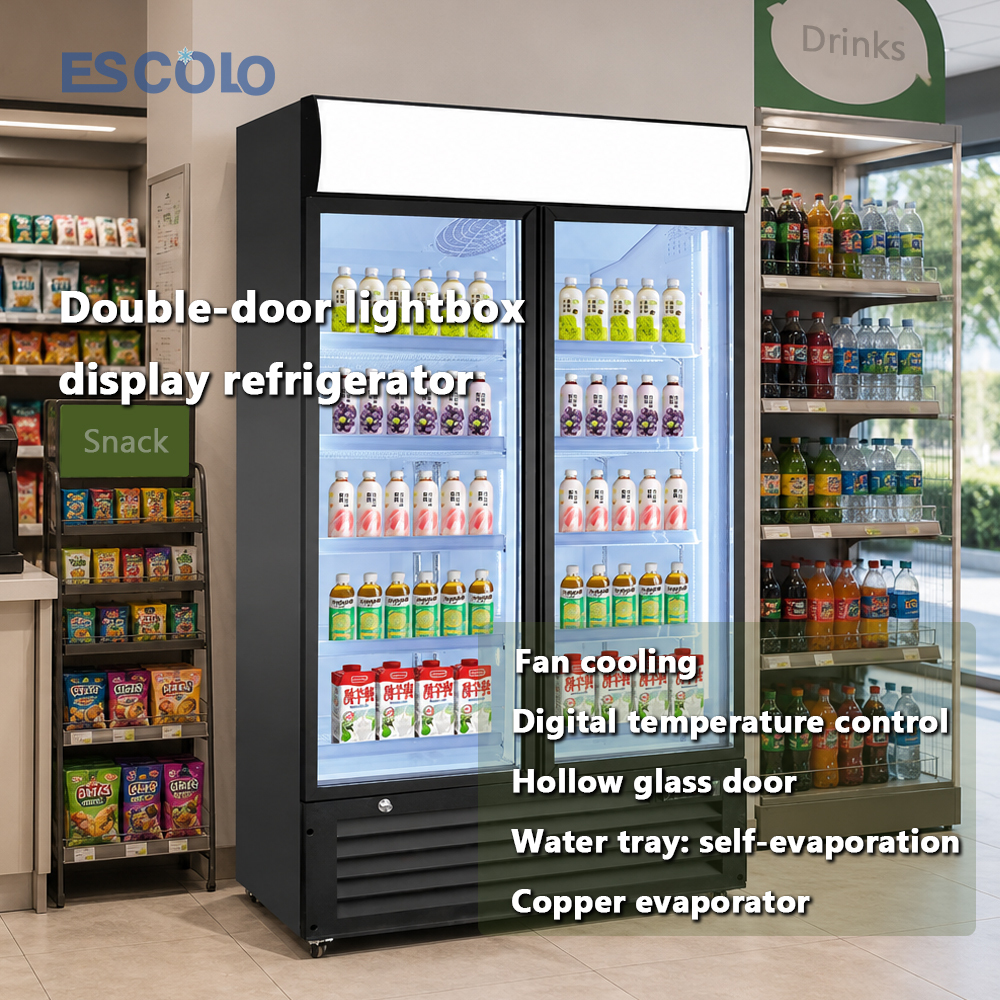

In modern supermarket and food retail environments, refrigeration stability is a critical factor that directly influences frozen food quality, product visibility, and daily sales performance. This supermarket showcase cooler is engineered with a fan cooling system designed to maintain consistent air circulation across all internal shelving levels, ensuring stable temperature distribution during continuous commercial operation.
Compared with traditional static cooling designs, the airflow-based system improves cooling recovery speed after frequent door openings, making it highly suitable for high-traffic retail environments such as supermarkets, convenience stores, and frozen food retail chains. This operational stability is especially important for businesses using an upright retail cooler in daily frozen food merchandising.
The integrated digital temperature controller allows retail operators to adjust and monitor internal conditions more efficiently, supporting simplified refrigeration management in busy store environments. In addition, the self-evaporation water tray system helps reduce manual maintenance workload by automatically managing condensation water during operation.
Combined with a web-type painted steel condenser structure, this system is designed for long-term commercial refrigeration performance, ensuring reliable operation for frozen food retail applications that require continuous daily use and stable product preservation.
In frozen food retail, product visibility plays a direct role in influencing customer purchasing decisions. This commercial freezer is designed with a three-layer glass door system featuring built-in heater glass technology, which helps reduce condensation buildup and maintain clearer visibility during high-humidity operating conditions.
Clear glass visibility significantly improves customer interaction with frozen products such as ice cream, frozen meals, seafood, and packaged frozen goods. This makes the supermarket showcase cooler more effective in supporting retail merchandising strategies focused on impulse purchase behavior.

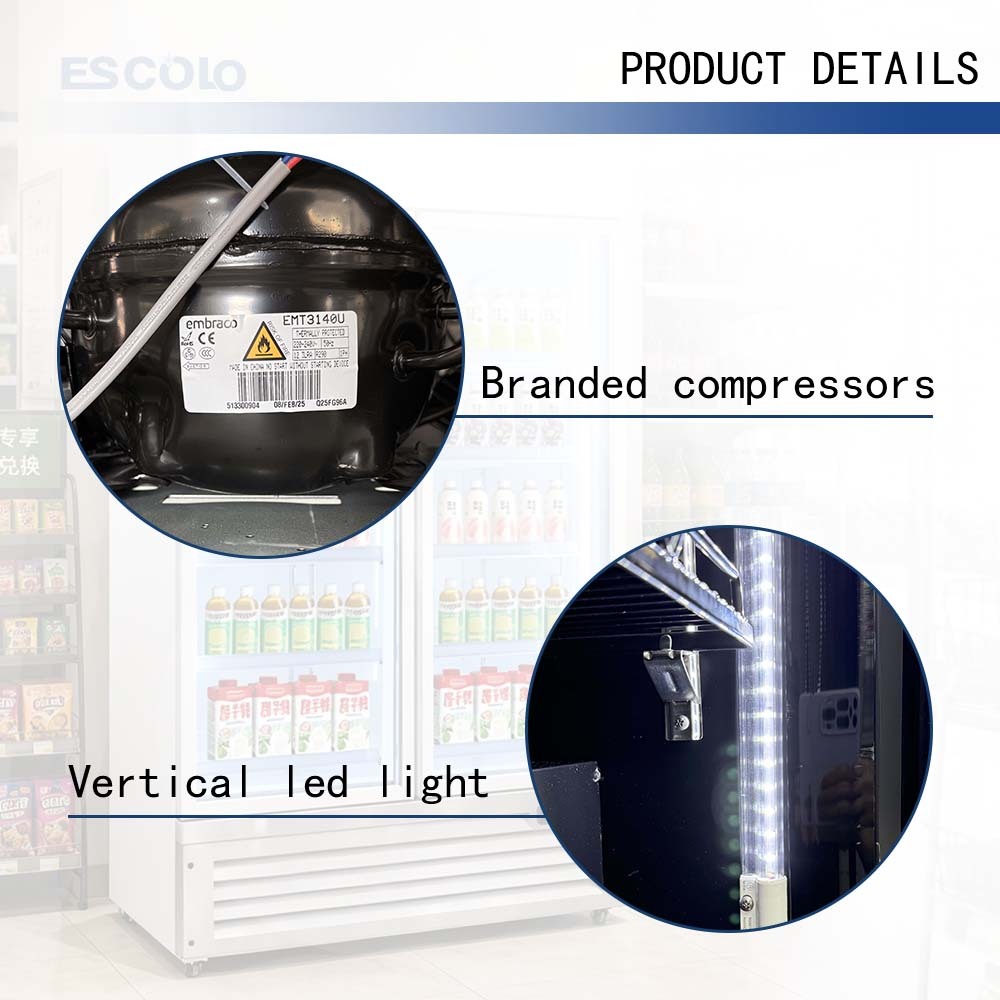

The vertical LED lighting system enhances internal brightness, ensuring that each shelf level is evenly illuminated. This improves product presentation quality and increases the visual appeal of frozen food categories inside retail environments.
The vertical cabinet layout of this upright retail cooler supports structured product organization across multiple shelving levels. PVC shelves allow flexible product arrangement based on packaging size and category, helping supermarkets optimize display efficiency and restocking workflows.
As a result, this system improves both visual merchandising performance and customer shopping experience in modern frozen food retail environments.
Commercial refrigeration equipment used in supermarkets must operate continuously under high workload conditions. This freezer is constructed using painted steel materials for both internal and external panels, ensuring long-term structural durability in demanding retail environments.
The PVC door frame structure is designed for frequent daily use, making it suitable for high-traffic supermarket operations where the upright retail cooler is opened repeatedly throughout the day. This helps ensure stable performance even under intensive commercial usage.
The transparent glass door design improves product accessibility while reducing unnecessary door openings, helping maintain internal temperature stability and reducing energy loss in retail environments.
The internal shelf system is designed to support efficient product organization and fast restocking during peak business hours. This improves operational workflow and helps supermarkets maintain consistent frozen food display standards throughout the day.
For long-term commercial use, this structure provides supermarkets and retail chains with a reliable refrigeration solution that balances durability, efficiency, and merchandising performance.
This commercial freezer is designed to support multiple frozen food retail environments where both refrigeration performance and display efficiency are required.
In supermarkets and grocery stores, it is suitable for frozen meat products, seafood, ice cream, frozen meals, and packaged frozen goods. The vertical structure of this supermarket showcase cooler helps improve aisle visibility while maximizing product display capacity in limited retail space.
In convenience stores, the compact upright design makes it ideal for space-efficient frozen food merchandising while maintaining strong product visibility through illuminated glass doors.
For chain retail operations, this upright retail cooler supports standardized frozen food display systems across multiple store locations, ensuring consistent merchandising presentation and brand identity across different retail environments.
It is also suitable for food distributors, cold chain operators, and commercial refrigeration project buyers who require stable frozen storage combined with high-visibility retail display functionality.
Certifications, Company Strength & Service Capability
This product is manufactured by Foshan Escol Kitchen Equipment Co., Ltd., established in 2015, specializing in commercial refrigeration equipment design and manufacturing.
The factory covers 50,000 square meters and operates a 2-kilometer automated production line, supported by advanced laser cutting machines, bending systems, and automated packaging equipment.
This industrial capability ensures:
The company focuses on delivering durable commercial refrigeration solutions including glass door refrigerators, display freezers, stainless steel kitchen refrigeration systems, and cake display cabinets.
Foshan Escol Kitchen Equipment Co., Ltd. provides comprehensive OEM & ODM solutions for global commercial refrigeration clients, supporting both established brands that require stable private label manufacturing and companies seeking to develop new customized product models for competitive markets.
OEM Service (Private Label Manufacturing)
Our OEM service is designed for clients who already have clear product specifications and need a reliable production partner to ensure consistent quality and stable supply. We support full brand customization including logo application, brand identity integration, product color and exterior design adjustments, glass door frame and lighting configuration customization, packaging design aligned with brand requirements, and voltage and plug adaptation for different international markets. This service focuses on delivering stable mass production with strict quality control, making it ideal for importers, wholesalers, supermarket equipment suppliers, and regional refrigeration brands.
ODM Service (Full Product Development)
Our ODM service is built for clients who want to create new refrigeration products or develop differentiated models from concept to production. We provide full engineering support including structural design optimization for improved cooling performance, cabinet size and capacity development, glass door system design for single, double, or multi-door configurations, refrigeration system selection based on real commercial application requirements, and practical performance optimization using verified components. We also support prototype development, functional testing, and complete production transition planning. Our engineering team works closely with clients throughout the entire process—from initial concept and technical drawings to prototype validation and final mass production shipment—ensuring a seamless path from idea to finished product.
To meet international market requirements, our commercial refrigeration products are manufactured under globally recognized compliance systems.
Depending on product model and export destination:
