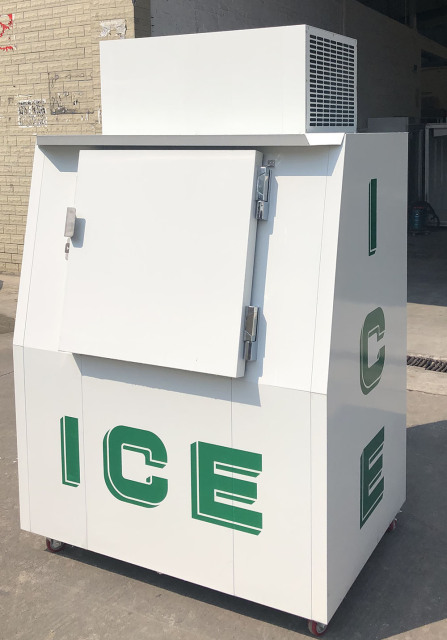

Commercial Slanted-Door Ice Storage Freezer for High-Capacity Outdoor Use

Name: Commercial Slanted-Door Ice Storage Freezer for High-Capacity Outdoor Use
Brand: ESCOLO
SKU: ESK-380S
Availability: InStock
Rating: 5 (1 reviews)

Description

Standard Features

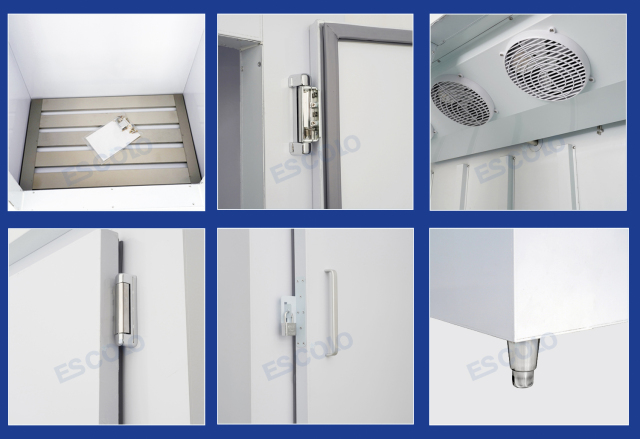

Fin type copper coil evaporator(fan cooling)

Fin type copper coil condenser

Digital temperature control

Cold wall / Fan cooling system optional

Painted steel body

Solid door

Water shelter on the door(outdoor unit)

Stainless steel rack inside the cabinet

Customized logo pasted acceptable

220V50HZ / 110V60HZ optional

Our slanted-door ice storage freezer is designed for convenient access, strong insulation, and reliable performance in demanding commercial environments. The angled solid door allows users to easily reach ice bags without fully opening a vertical door, reducing cold air loss and increasing efficiency—perfect for gas stations, convenience stores, outdoor kiosks, and ice vending points. Built with a durable painted steel body, the unit features fin-type copper evaporator and condenser coils for stable and efficient cooling. With both cold-wall and fan-cooling systems available, it maintains a consistent temperature of -5°C to -15°C using R404A refrigerant. The interior is equipped with sturdy stainless steel racks, keeping ice bags organized and supported even at full capacity (120–200 bags depending on the model). A water shelter on the door helps prevent rain intrusion for outdoor installation, and optional customized logos provide strong brand visibility. Dual-voltage support (220V/50Hz & 110V/60Hz) ensures compatibility across global markets.

Model	ESK-380S	ESK-600S
Door	1	2
Cold wall product size(mm)	12208901900	18308902065
Fan cooling product size(mm)	12209501900	18309502065
Temp	-5~-15°C	-5~-15°C
Refrigerant	R404A	R404A
Capacity	120bags	200bags
Foam	70mm	70mm

FAQ

How to achieve automatic defrost in glass door freezer?

The glass door freezer realizes automatic defrost through defrost timer. The defrost timer is set to start defrost after four hours, usually lasting 20 minutes.
When the defrost cycle kicks in, the freezer's compressor shuts down and the hot air in the defrost system begins to melt the ice that has accumulated on the evaporator coil. The water from the melted ice is then collected and drained from the freezer. Once the defrost cycle is complete, the compressor will turn back on and the freezer will return to its normal cooling cycle.

Do you have quality control?

Yes, we attach great importance to quality control.

Can I have my own customized product?

Yes, your customized requirements for color, logo, design, package, carton mark, etc

What's the delivery time?

It will take about 20days to finish an order. But the exact time is according to actual situation.

What's the MOQ?

One set

How can I get sample and how long will it takes?

Sample fee will be doubled, but we will refund the extra money after you place an order to us.It usually takes 5-7 days to produce a sample.

Can I customize the design of ESCOLO's vertical showcase refrigerators?

Yes, ESCOLO offers customization options for our vertical showcase refrigerators to suit your specific business needs and branding requirements.

Do Vertical Showcase Freezers use a lot of electricity?

Vertical Showcase Freezers, like all appliances, use electricity to operate. The amount of electricity that an upright freezer consumes can vary depending on factors such as the size of the freezer, its energy efficiency rating, how often the door is opened, the temperature setting, and the ambient temperature of the room where it is located.
Generally speaking, upright freezers are more energy-efficient than chest freezers because they are designed with more insulation and better organization of the stored items which helps to minimize temperature fluctuations when the door is opened.

How can Upright Fridges benefit my commercial kitchen?

Upright Fridges from ESCOLO offer ample storage space and precise temperature control, keeping your ingredients fresh and organized. With energy-efficient technology, our Upright Fridges help you save on operating costs.

How can Upright Fridges benefit my commercial kitchen?

How does ESCOLO Upright Display Fridge achieve self-drainage?

-Condensation or water collects in a drainage pan or tray located at the bottom of the freezer compartment.
-A heater or evaporator coil is activated to heat the water in the drainage pan and turn it into vapor.
-The vapor is released into the freezer compartment and evaporates into the air, eliminating the need for a drainage tube or manual drainage.
