Standard Features Fin type copper coil evaporator(fan cooling)； Fin type copper coil condenser； Digital temperature control； Cold wall / Fan cooling system optional； Painted steel body； Defrosted glass door； LED lamp inside； Stainless steel rack inside the cabinet； Customized logo pasted acceptable； 220V50HZ / 110V60HZ optional； |
|
Model |
ESK-300G |
ESK-420G |
ESK-630G |
ESK-1000G |
| Door | 1 | 1 | 1 | 2 |
|
Cold wall product size(mm) |
915*765*2065 |
1220*765*2065 |
1570*825*2065 |
2250*950*2065 |
|
Fan cooling product size(mm) |
915*825*2065 |
1220*825*2065 |
1570*825*2065 |
2250*950*2065 |
| Temp |
-5~-15°C |
|||
| Refrigerant |
R404A |
|||
| Capacity |
100bags |
120bags |
200bags |
320bags |
|
Foam |
70mm |
|||
The ESK-420G commercial ice storage box indoor is designed around these practical requirements.
With a cabinet size of 1220 × 765 × 2065 mm and a stated capacity of 120 bags, the unit provides substantial vertical storage while maintaining a professional upright format. This makes it suitable for indoor commercial environments where businesses need to store packaged ice in a dedicated freezer rather than using general-purpose freezing equipment.

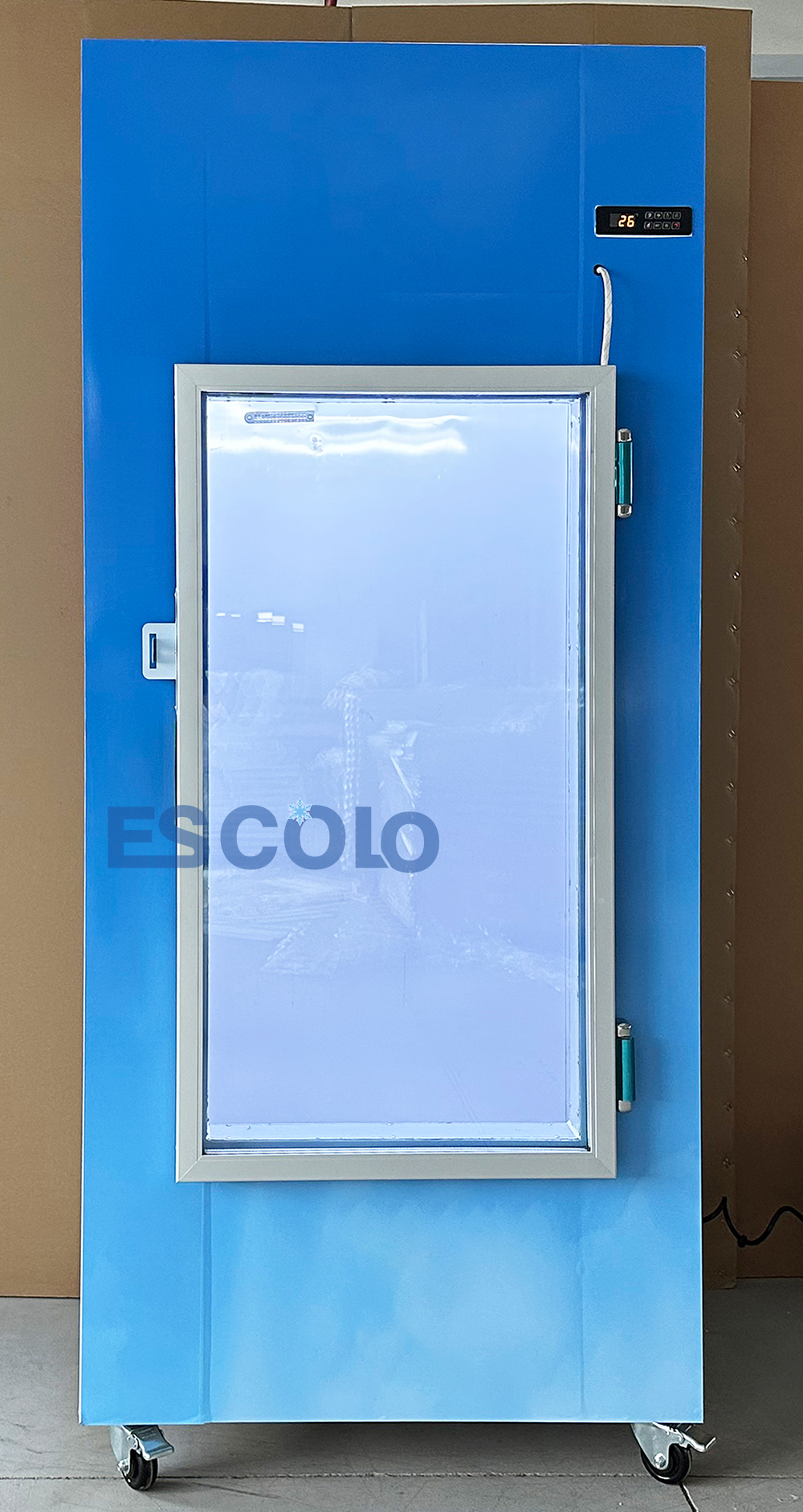

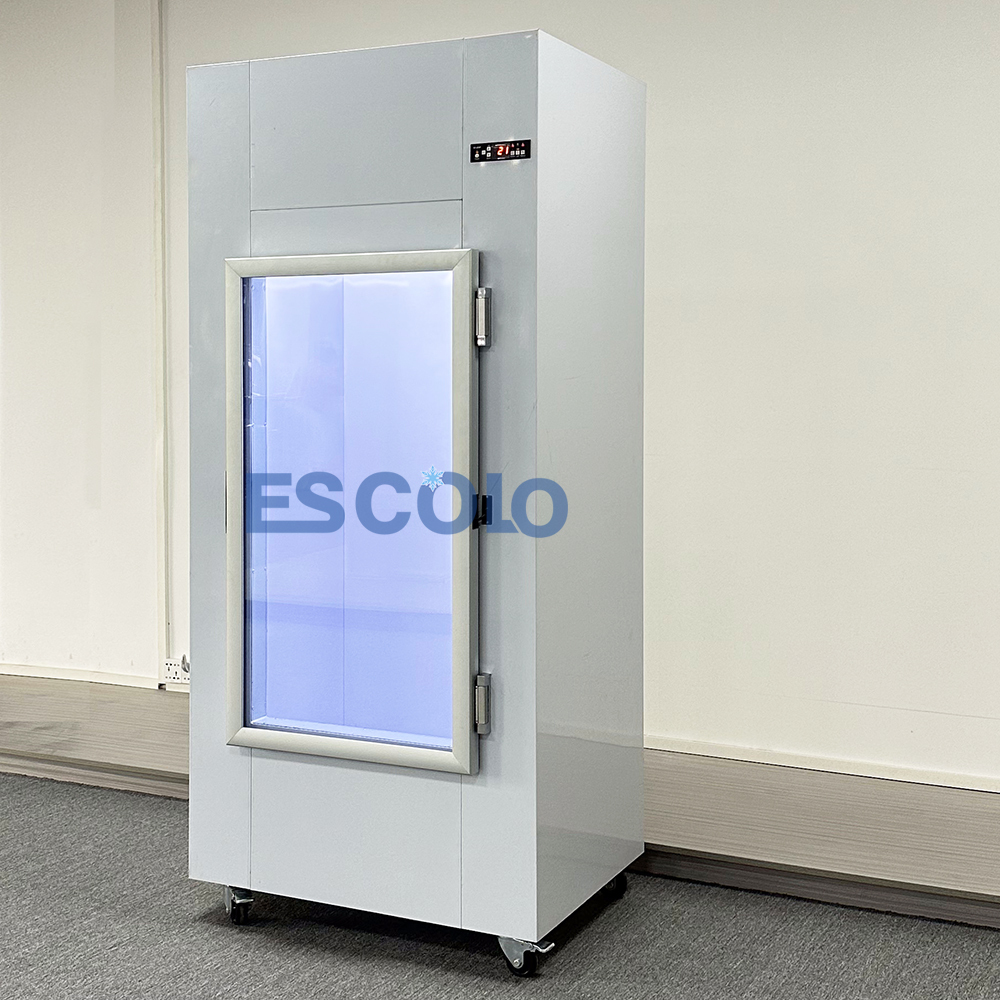

One of the most useful characteristics of this model is its glass-door design. Unlike an opaque cabinet, the glass door allows staff to check the available ice stock without opening the cabinet immediately. Combined with the internal LED lamp, the storage area remains easier to inspect during busy operating hours. For businesses that regularly replenish ice inventory, better visibility can simplify stock checks and reduce unnecessary door opening.
Temperature management is handled through a digital temperature control system, while the freezer works within a -5°C to -15°C temperature range. The cooling configuration can be selected between cold wall and fan cooling, allowing buyers to choose a setup that better matches their operational requirements.
The refrigeration system uses a fin-type copper coil evaporator for fan cooling and a fin-type copper coil condenser. The copper coil construction is intended to provide an effective heat-transfer path within the refrigeration system while supporting consistent cooling operation.
Inside the cabinet, the stainless steel rack provides a dedicated structure for organizing stored ice bags. The painted steel exterior gives the cabinet a practical commercial appearance and is suited to regular business use.
For international B2B buyers, electrical configuration is another important procurement consideration. The ESK-420G supports 220V/50Hz or 110V/60Hz options, making it possible to specify the electrical configuration according to the destination market.
The unit can also accommodate a customized pasted logo, providing an option for distributors, retailers and ice suppliers that want the equipment to carry their own branding.
The ESK-420G is rated for 120 bags. Buyers should compare this capacity with average daily ice consumption and expected replenishment frequency before selecting the equipment.
The operating temperature is -5°C to -15°C. Procurement teams should confirm that this range matches the intended ice storage application.
The specified cabinet dimensions are 1220 × 765 × 2065 mm. Buyers should measure the intended installation area, including available height and access clearance, before ordering.
The product supports cold wall or fan cooling options. Buyers should specify the required configuration when requesting a quotation.
The available electrical configurations are 220V/50Hz and 110V/60Hz. The correct version should be confirmed according to the destination market before production.
A customized pasted logo is acceptable. Distributors and retailers interested in private-label presentation can discuss logo requirements during the quotation process.
Routine maintenance should follow the manufacturer's operating and maintenance recommendations. Keeping the cabinet clean and ensuring that the refrigeration system has suitable operating conditions can support reliable day-to-day use.
Before installation, buyers should confirm that the cabinet can be moved into the intended location and that sufficient space is available for normal door operation and routine servicing.
MOQ, warranty terms, production lead time and shipping arrangements are not specified in the supplied product information. These details should be confirmed directly with the supplier according to the order and destination.
Convenience stores often need to keep packaged ice available while making efficient use of limited back-of-house or indoor storage space.
The ESK-420G provides dedicated ice storage with a glass door, internal lighting and organized rack space. Staff can quickly check inventory and retrieve ice when required.
Business value: easier stock visibility and dedicated storage for recurring ice demand.
Retail businesses handling packaged ice need equipment that can accommodate regular inventory replenishment while keeping products organized.
The 120-bag capacity provides a dedicated storage area, while the glass door makes stock inspection more straightforward.
Business value: improved inventory organization and convenient access to packaged ice.
Gas stations frequently sell packaged ice as an additional convenience product. A dedicated upright freezer can help separate ice inventory from other frozen merchandise.
The ESK-420G's upright design, visible storage area and configurable electrical supply make it suitable for commercial procurement projects requiring dedicated ice storage.
Business value: a dedicated ice-storage point that supports routine replenishment and stock checking.
Businesses involved in packaged ice sales may require dedicated equipment for holding prepared inventory before distribution or retail sale.
The ESK-420G's 120-bag capacity and sub-zero operating range provide a purpose-oriented solution for organized ice storage.
Business value: centralized storage for packaged ice inventory and easier stock handling.
Restaurants, catering operations and hospitality businesses may require a dedicated area for packaged ice used in beverages, service or events.
The stainless steel rack and internal LED lighting help make the cabinet easier to organize and operate during busy periods.
Business value: dedicated ice inventory management without relying on general-purpose freezer storage.
ESCOLO was founded in 2015 and focuses on commercial refrigeration equipment, including ice storage, retail refrigeration, beverage cooling, cake showcases and commercial kitchen refrigeration.

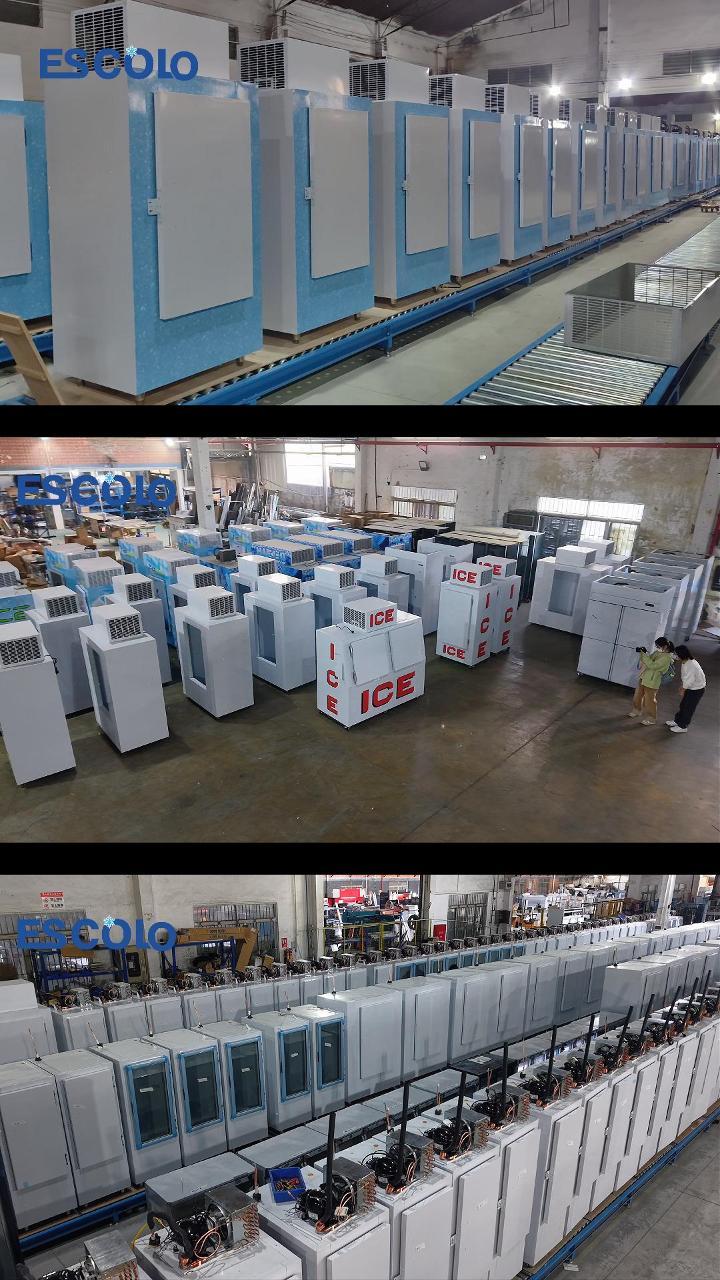

ESCOLO's product information identifies a 50,000 m² factory in Foshan, providing a dedicated manufacturing base for commercial refrigeration equipment.
For B2B buyers, ESCOLO supports OEM/ODM-oriented requirements. Available customization for this product includes a pasted customer logo, while other requirements can be discussed according to the project.
Commercial refrigeration equipment needs consistent assembly, refrigeration-system integration and functional inspection before shipment. ESCOLO positions quality control as part of its manufacturing process.
ESCOLO works with international B2B customers and provides commercial refrigeration equipment for overseas markets. Electrical configurations such as 220V/50Hz and 110V/60Hz are available for different market requirements.
If you are sourcing an ice storage bin for a convenience store, supermarket, gas station, ice distribution business or other commercial operation, the ESK-420G provides a dedicated 120-bag storage format with glass-door visibility and a -5°C to -15°C operating range.
Contact ESCOLO to confirm the cooling configuration, electrical specification, logo requirements, order quantity, shipping terms and other project details before placing your order.
Looking for a commercial ice storage box indoor solution for your market? Send us your required quantity, destination country and preferred cooling configuration to request a product quotation.
The ESK-420G has a stated storage capacity of 120 bags.
The specified operating temperature range is -5°C to -15°C.
Yes. The product is specified as an INDOOR ICE FREEZER and is designed for commercial packaged ice storage applications.
The product supports cold-wall or fan-cooling configurations. The required configuration should be confirmed when placing an order.
Yes. The ESK-420G uses a digital temperature control system.
Yes. The glass door allows users to see the stored ice bags without needing to open the cabinet for every stock check. Internal LED lighting further improves visibility inside the cabinet.
The freezer uses a fin-type copper coil evaporator for the fan-cooling configuration.
It uses a fin-type copper coil condenser.
Yes. Customized pasted logos are acceptable according to the supplied product specifications.
The available options are 220V/50Hz and 110V/60Hz. Buyers should specify the required electrical configuration according to the destination market.
The specified dimensions are 1220 × 765 × 2065 mm.
Yes. The cabinet is equipped with a stainless steel rack for organized ice storage.
The product offers cold-wall and fan-cooling options. Buyers should confirm the preferred configuration during the quotation stage.
The supplied product information does not specify an MOQ for this model. Please contact the supplier for current order requirements.
Warranty and shipping terms are not specified in the supplied product information and should be confirmed according to the order quantity and destination.
