Standard Features External & internal material: painted steel; Web-type painted steel condensor; Three layer glass door with glass heater, PVC door frame; Fan cooling; PVC shelf; Vertical led light; Water tray: self-evaporation; Digital temperature control; |

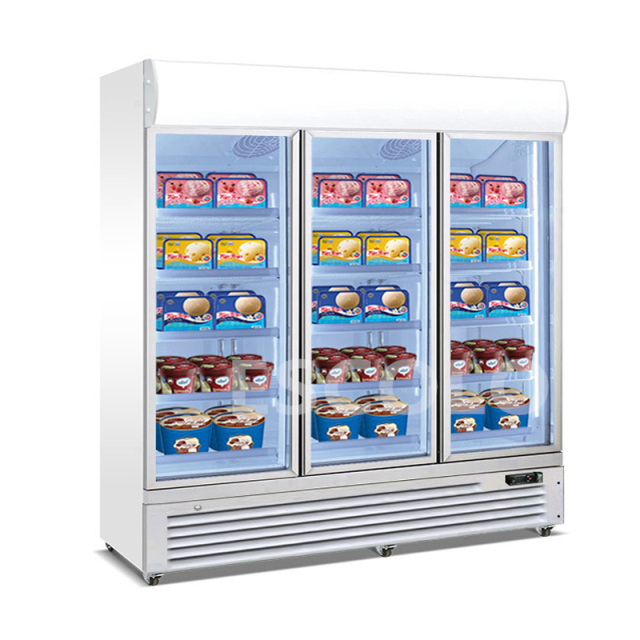

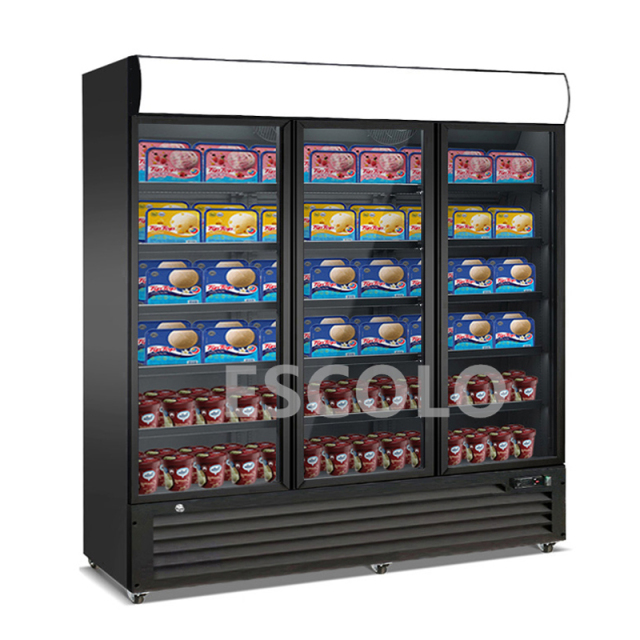

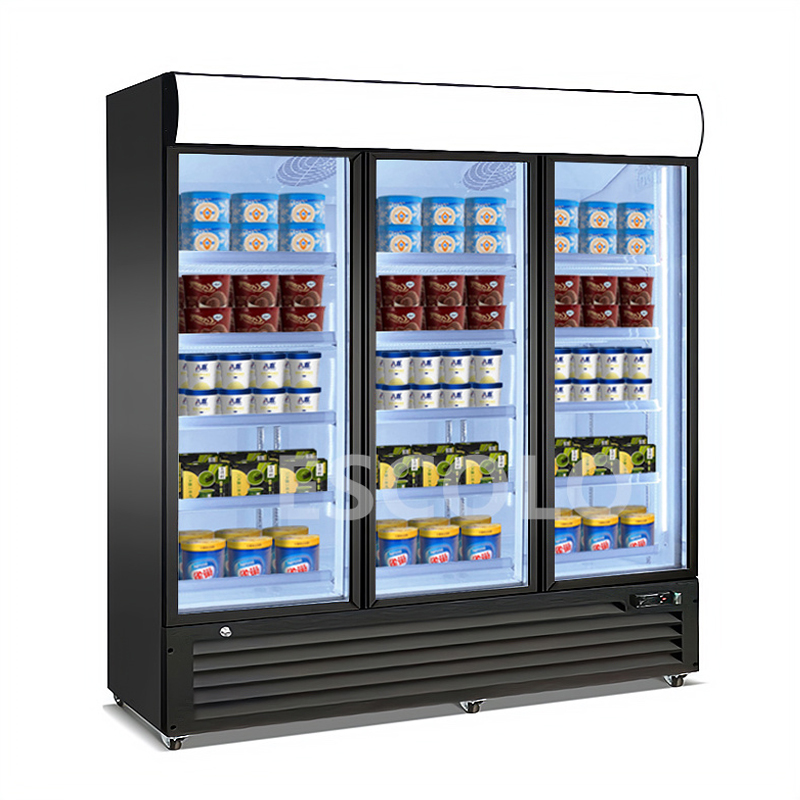

The ESD-1985H is the largest model in the lightbox freezer series, built to meet high-volume commercial demands while maximizing product presentation. Featuring a sturdy painted-steel interior and exterior, this three-door unit offers a spacious 1500-liter loading capacity and a wide 1985×760×2000 mm structure—ideal for supermarkets, frozen food stores, and high-traffic retail environments.
Its heated triple-layer glass doors keep the display clear at all times by effectively preventing condensation, even under heavy moisture conditions. The fan-assisted cooling system delivers consistent cold-air circulation to maintain stable temperatures between -22 and -18°C, ensuring optimal preservation for ice cream, seafood, frozen meat, and other packaged frozen goods.
Inside, adjustable PVC shelves provide flexible merchandising options, while the vertical LED illumination enhances visibility across all levels. The large top-mounted lightbox creates a strong promotional presence, helping brands attract customer attention and reinforce marketing messages.
With robust container loading capability (7/14 units for 20GP/40HQ), the ESD-1985H is a high-efficiency, high-impact solution designed for retailers seeking maximum storage, superior display appeal, and reliable long-term freezing performance.
|
Model |
Door |
Door type |
Dimensions(mm) |
Capacity |
Temp |
Loading (20GP/40HQ) |
|
ESD-220H |
1 |
Hinge door |
420*485*1880 |
220L |
-22~-18°C |
55/139 |
| ESD-400H | 1 | 620*680*1990 | 400L | 27/71 | ||
| ESD-600H | 1 | 700*660*2000 | 600L | 24/51 | ||
| ESD-700H | 1 | 700*760*2000 | 700L | 21/45 | ||
| ESD-800H | 1 | 800*750*2030 | 800L | 18/39 | ||
| ESD-1330H | 2 | 1330*760*2000 | 900L |
12/23 |
||
| ESD-1985H | 3 | 1985*760*2000 | 1500L | 7/14 |
