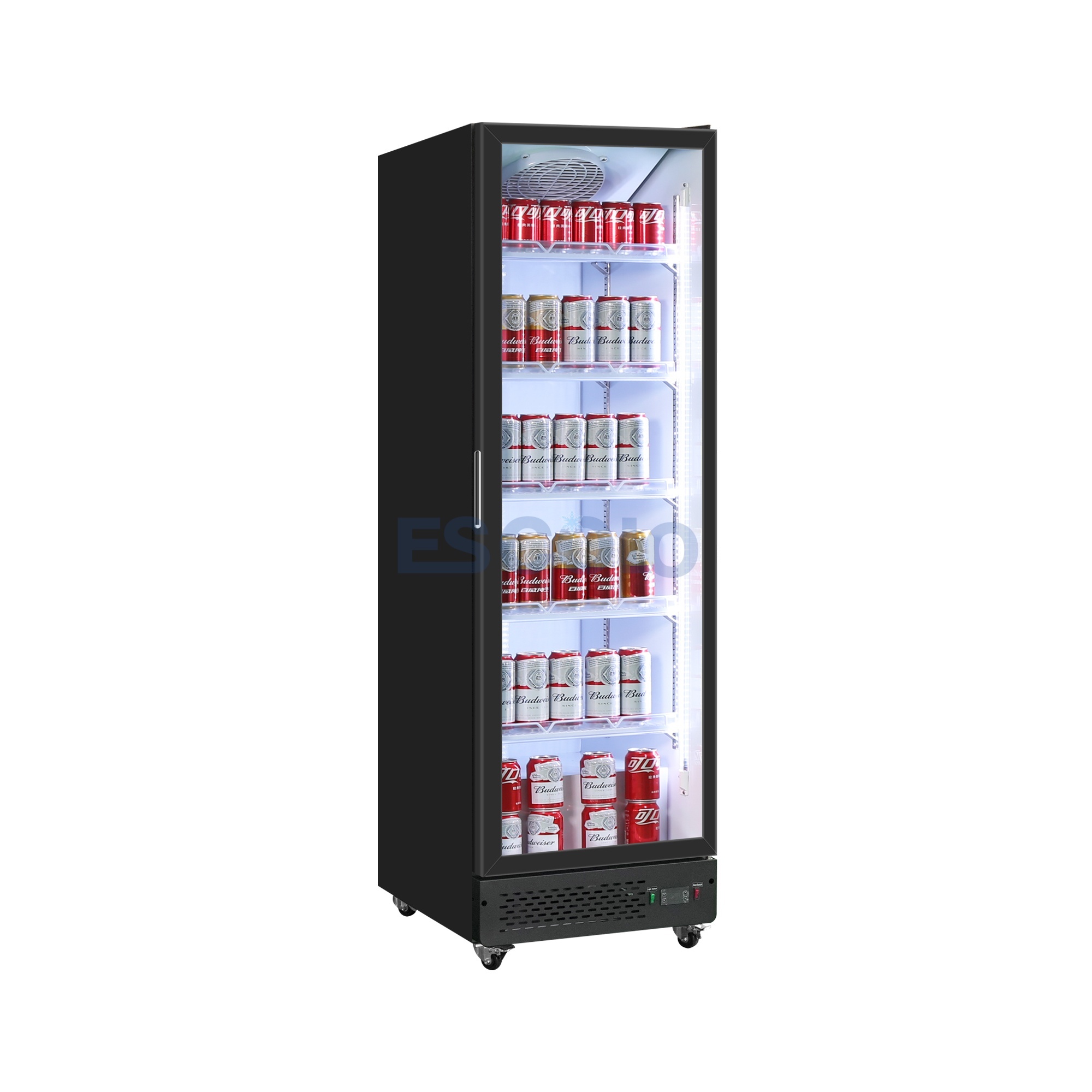

Compact Single Door Chiller for Small Shops & Beverage Display

Name: ALG380-1M-TJ Compact Single Door Chiller for Small Shops & Beverage Display
Brand: ESCOLO
SKU: ALG380-1M-TJ ；ALG620-1M-TJ
Availability: InStock
Rating: 5 (1 reviews)

Description

Specification

External & internal material: painted steel
Web-type painted steel condenser
Fin type evaporator aluminum pipe
Voltage: 220V/50HZ
Full glass door without heater, PVC door frame; PVC door handle
Fan cooling
5 pieces per door of PVC shelf, with price tag
Vertical LED light
Water tray: self-evaporation
Switch for light and switch for on/off
Hongke Digital temperature control
Foam & crate pallet, with shipping label

Both ALG380-1M-TJ and ALG620-1M-TJ maximize display and storage in compact layouts. ALG380-1M-TJ delivers a 295L vertical display ideal for tight spaces, while ALG620-1M-TJ offers a larger 394L capacity for taller or bulkier items without expanding beyond a single-door footprint. Painted-steel inner and outer surfaces (black exterior / white interior optional) simplify cleaning and withstand frequent use. Fan-assisted circulation ensures uniform cooling, while vertical LED lighting and adjustable PVC shelves with price-tag holders optimize product visibility and merchandising. Digital temperature control and self-evaporating water trays reduce operational upkeep. These models provide dependable, no-frills refrigeration for small retailers seeking efficient display, easy maintenance, and clear product visibility.

Model	ALG380-1M-TJ	ALG 620-1M-TJ
Unit size（mm）	5405601920	6205901995
Package size(mm)	5806201840	6706301905
Capacity	295L	394L
Door	1	1
Fan qty	1	1
Gas	Wanbag FKA55ML(R290)	Wanbag FKA55ML(R290)
Temperature	0°C~+10°C	0°C~+10°C
20GP/40HQ(unit)	95	74

FAQ

How to achieve automatic defrost in glass door freezer?

The glass door freezer realizes automatic defrost through defrost timer. The defrost timer is set to start defrost after four hours, usually lasting 20 minutes.
When the defrost cycle kicks in, the freezer's compressor shuts down and the hot air in the defrost system begins to melt the ice that has accumulated on the evaporator coil. The water from the melted ice is then collected and drained from the freezer. Once the defrost cycle is complete, the compressor will turn back on and the freezer will return to its normal cooling cycle.

Do you have quality control?

Yes, we attach great importance to quality control.

Can I have my own customized product?

Yes, your customized requirements for color, logo, design, package, carton mark, etc

What's the delivery time?

It will take about 20days to finish an order. But the exact time is according to actual situation.

What's the MOQ?

One set

How can I get sample and how long will it takes?

Sample fee will be doubled, but we will refund the extra money after you place an order to us.It usually takes 5-7 days to produce a sample.

Can I customize the design of ESCOLO's vertical showcase refrigerators?

Yes, ESCOLO offers customization options for our vertical showcase refrigerators to suit your specific business needs and branding requirements.

Do Vertical Showcase Freezers use a lot of electricity?

Vertical Showcase Freezers, like all appliances, use electricity to operate. The amount of electricity that an upright freezer consumes can vary depending on factors such as the size of the freezer, its energy efficiency rating, how often the door is opened, the temperature setting, and the ambient temperature of the room where it is located.
Generally speaking, upright freezers are more energy-efficient than chest freezers because they are designed with more insulation and better organization of the stored items which helps to minimize temperature fluctuations when the door is opened.

How can Upright Fridges benefit my commercial kitchen?

Upright Fridges from ESCOLO offer ample storage space and precise temperature control, keeping your ingredients fresh and organized. With energy-efficient technology, our Upright Fridges help you save on operating costs.

How can Upright Fridges benefit my commercial kitchen?

How does ESCOLO Upright Display Fridge achieve self-drainage?

-Condensation or water collects in a drainage pan or tray located at the bottom of the freezer compartment.
-A heater or evaporator coil is activated to heat the water in the drainage pan and turn it into vapor.
-The vapor is released into the freezer compartment and evaporates into the air, eliminating the need for a drainage tube or manual drainage.
