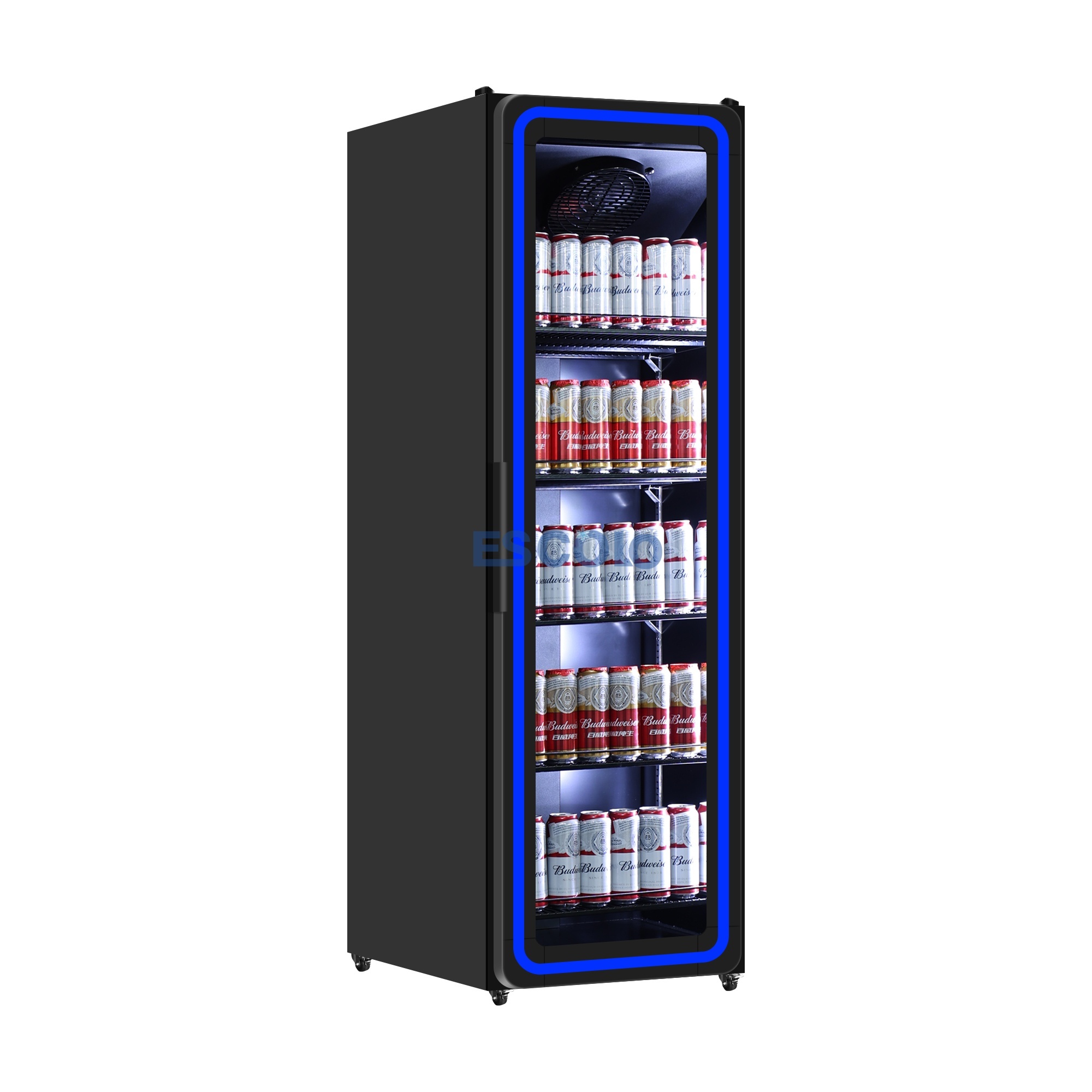

387L Single Full Glass Door Curved-Corner Display Cooler with Illuminated Frame

No. ALG620-1M
The ALG620-1M introduces a redesigned single-door structure featuring smooth curved corners and an open-bottom interior that expands the visible display area. Its enlarged door-frame lighting casts broader, cleaner illumination on beverages, enhancing clarity and overall presentation.
Unit Size:
620*635*1980mm
  • 387L Single Full Glass Door Curved-Corner Display Cooler with Illuminated Frame

Description

1. External&internal material: painted steel;
2. Copper evaporator with copper ends;
3. Voltage: 220V/50HZ;
4. Full glass door without heater, with Lighting around,
5. Fan cooling;
6. 5 pieces per door of PVC shelf, with price tag;
7. Vertical led light;
8. Water tray: self-evaporation;
9. Switch for light and switch for on/off;
10 Digital temperature control;
11. Foam+crate pallet, with shipping label

As the entry model of the new series, the 387L ALG620-1M is engineered to maximize visibility in compact retail environments. The cabinet adopts a rounded-corner design that delivers a softer visual appeal while offering safer operation in narrow aisles. By removing the bottom plate, the unit exposes a taller, uninterrupted product display area that makes every shelf more prominent. The upgraded extra-wide lighting frame evenly distributes light along the full height of the glass door, amplifying the brightness and attractiveness of beverages and packaged goods.
Inside, the model features a copper evaporator, vertical LED illumination, adjustable PVC shelves, and precise digital temperature control within 0~+10°C. Equipped with R290 refrigerant and a reliable fan-cooling system, the ALG620-1M ensures stable cooling performance and a refined merchandising effect, making it a strong fit for cafés, convenience stores, and drink stands seeking a modern, space-efficient cooler.

Model Unit Size(L*W*H mm) Package Size(L*W*H mm) Capacity Door Temperature  Gas 20GP/40HQ(unit}
ALG520-1M 620*635*1980 670*530*2030 387L 1 0°C~ +10℃ Donper(R290) 27/74

Product Introduction

Upgrade your retail display with our 387L Single Glass Door Display Cooler, engineered to maximize product visibility and boost impulse sales. Designed for supermarkets, convenience stores, cafés, and beverage brands, this commercial display refrigerator acts as a “silent salesperson”, combining reliable cooling with eye-catching merchandising.With a sleek curved-corner design and illuminated frame, this cooler not only preserves freshness but also enhances brand presentation—making your products stand out in any commercial environment.

High-Impact Display Design for Modern Retail Environments

This 387-liter single-door glass display refrigerator is designed to enhance in-store displays. The full-height, curved glass door with an illuminated frame clearly showcases beverages and refrigerated retail items, effectively attracting customers. Efficient and rapid refrigeration keeps beverages and refrigerated items at optimal temperatures. Designed for supermarkets, convenience stores, and branded retail spaces, it maximizes product exposure while maintaining an optimal internal environment. Adjustable shelving allows retailers to flexibly adjust product placement, quickly responding to promotions, seasonal changes, and high-demand product displays, making it ideal for businesses seeking a competitive edge.

Advanced Cooling System with Energy-Efficient Performance
This display refrigerator uses a high-efficiency compressor and environmentally friendly R290 refrigerant, providing powerful and stable cooling while effectively reducing energy consumption. A fan-assisted refrigeration system ensures even temperature distribution within the refrigerator, maintaining perfect refrigeration for beverages and perishable goods even in high-traffic environments. A precise digital temperature controller allows for easy temperature adjustment, ensuring consistent stability and product safety. Combining low-noise operation and automatic defrosting, this unit achieves a perfect balance between performance, sustainability, and user convenience, meeting the demands of modern commercial refrigeration.

Versatile Applications with Proven Commercial Reliability

This commercial display refrigerator is designed for a variety of retail and food service environments, enabling both efficient product storage and eye-catching merchandise display. From beverage display cases in convenience stores to dessert display cases in cafes, its flexible configuration accommodates products of various sizes and categories. A robust and durable construction, tempered glass, and reliable refrigeration components ensure long-term stable operation and minimize maintenance needs. By enhancing product visibility, improving energy efficiency, and supporting organized display layouts, this refrigerator helps businesses increase sales, reduce waste, and deliver a superior customer experience.

How to achieve automatic defrost in glass door freezer?

The glass door freezer realizes automatic defrost through defrost timer. The defrost timer is set to start defrost after four hours, usually lasting 20 minutes.
When the defrost cycle kicks in, the freezer's compressor shuts down and the hot air in the defrost system begins to melt the ice that has accumulated on the evaporator coil. The water from the melted ice is then collected and drained from the freezer. Once the defrost cycle is complete, the compressor will turn back on and the freezer will return to its normal cooling cycle.

Do you have quality control?

Yes, we attach great importance to quality control.

Can I have my own customized product?

Yes, your customized requirements for color, logo, design, package, carton mark, etc

What's the delivery time?

It will take about 20days to finish an order. But the exact time is according to actual situation.

What's the MOQ?

One set

How can I get sample and how long will it takes?

Sample fee will be doubled, but we will refund the extra money after you place an order to us.It usually takes 5-7 days to produce a sample.

Can I customize the design of ESCOLO's vertical showcase refrigerators?

Yes, ESCOLO offers customization options for our vertical showcase refrigerators to suit your specific business needs and branding requirements.

Do Vertical Showcase Freezers use a lot of electricity?

Vertical Showcase Freezers, like all appliances, use electricity to operate. The amount of electricity that an upright freezer consumes can vary depending on factors such as the size of the freezer, its energy efficiency rating, how often the door is opened, the temperature setting, and the ambient temperature of the room where it is located.
Generally speaking, upright freezers are more energy-efficient than chest freezers because they are designed with more insulation and better organization of the stored items which helps to minimize temperature fluctuations when the door is opened.

How can Upright Fridges benefit my commercial kitchen?

Upright Fridges from ESCOLO offer ample storage space and precise temperature control, keeping your ingredients fresh and organized. With energy-efficient technology, our Upright Fridges help you save on operating costs.

How can Upright Fridges benefit my commercial kitchen?

Upright Fridges from ESCOLO offer ample storage space and precise temperature control, keeping your ingredients fresh and organized. With energy-efficient technology, our Upright Fridges help you save on operating costs.

How does ESCOLO Upright Display Fridge achieve self-drainage?

-Condensation or water collects in a drainage pan or tray located at the bottom of the freezer compartment.
-A heater or evaporator coil is activated to heat the water in the drainage pan and turn it into vapor.
-The vapor is released into the freezer compartment and evaporates into the air, eliminating the need for a drainage tube or manual drainage.

How to achieve automatic defrost in glass door freezer?

The glass door freezer realizes automatic defrost through defrost timer. The defrost timer is set to start defrost after four hours, usually lasting 20 minutes.
When the defrost cycle kicks in, the freezer's compressor shuts down and the hot air in the defrost system begins to melt the ice that has accumulated on the evaporator coil. The water from the melted ice is then collected and drained from the freezer. Once the defrost cycle is complete, the compressor will turn back on and the freezer will return to its normal cooling cycle.
